DJI Matrice M400 + 1 year DJI Care Enterprise Plus

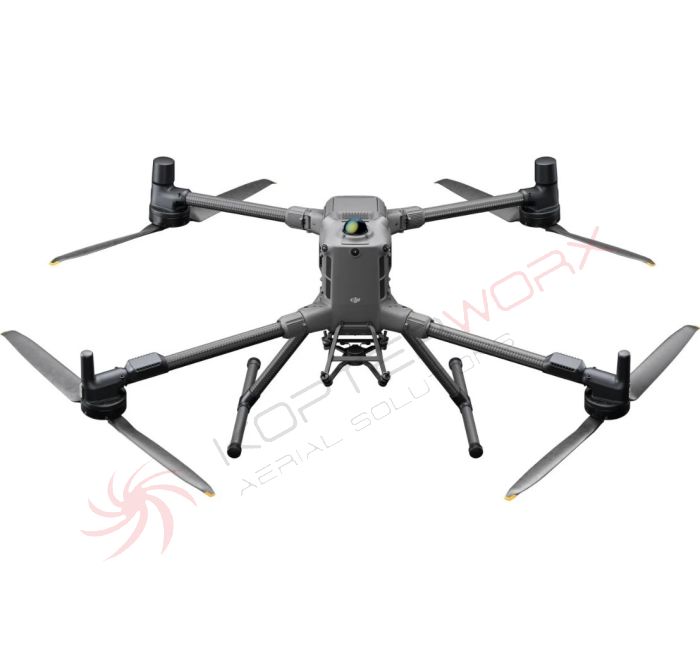

DJI Matrice 400 – The Ultimate Industrial Drone Platform

Long-Endurance Flight. Advanced Obstacle Detection. Maximum Efficiency.
Redefining Performance for Enterprise Missions

The DJI Matrice 400 is DJI’s premier enterprise drone, engineered for extended operations and advanced sensing in the most demanding environments. With a maximum flight time of 59 minutes, 6 kg payload capacity, integrated spinning LiDAR, and mmWave radar, it achieves exceptional obstacle detection—even for high-voltage power lines.

Enhanced with O4 Enterprise Enhanced video transmission and airborne relay transmission, the Matrice 400 simplifies complex missions from inspection and mapping to emergency response and AEC applications.

Key Performance Highlights
• Up to 59-Minute Flight Time
• 6 kg Maximum Payload Capacity
• mmWave Radar + Rotating LiDAR
• O4 Enterprise Video Transmission up to 40 km
• Real-Time Terrain Following & Obstacle Avoidance
• Weatherproof (IP55) for Harsh Environments

Multi-Payload Powerhouse
The Matrice 400 supports up to 7 payloads simultaneously via multiple E-Port V2 connectors and a 3-gimbal mount system. Compatible with DJI’s top payloads—including the Zenmuse H30, L2, P1, S1 Spotlight, V1 Speaker, and Manifold 3—it also integrates third-party solutions for unmatched versatility.

Supported Payloads:
• Zenmuse H30 Series: Combines wide-angle, zoom, thermal, laser rangefinder, and NIR lighting for ultimate visibility—day or night.
• Zenmuse L2 LiDAR: High-precision LiDAR with DJI-developed IMU and 4/3" RGB camera for efficient geospatial mapping.
• Zenmuse P1: Full-frame sensor with interchangeable lenses, tailored for high-accuracy photogrammetry.
• Zenmuse S1 Spotlight: LEP-based spotlight ideal for night operations and emergency response.
• Zenmuse V1 Speaker: High-power speaker for public safety and emergency communications.
• Manifold 3: Onboard computer offering 100 TOPS processing in a 120g lightweight package.

Built for Reliability
All-Weather, All-Terrain
Rated IP55, the Matrice 400 operates reliably in rain, dust, and extreme temperatures from -20°C to 50°C.

Industry-Leading Obstacle Detection
Combining rotating LiDAR, mmWave radar, and low-light fisheye sensors, the Matrice 400 detects even narrow power lines or branches—day or night, in fog or rain.

Next-Gen Connectivity
O4 Enterprise Enhanced Transmission: Up to 40 km range with 10-antenna array and phased-array controller.
Airborne Video Relay: Extend range using one drone as an airborne repeater.
4G Mobile Network Support: Automatically switches between frequencies with DJI Cellular Dongle 2 for stable urban and remote connectivity.

Smart Positioning & Situational Awareness
360° Obstacle Sensing with LiDAR + Radar
Full-Color Low-Light Visual Assistance
AR Projections: Highlight power lines, landmarks, waypoints in real time
Live Annotation: Measure distances, mark targets, sync with FlightHub 2

Intelligent Automation & Advanced Flight Modes
Real-Time Terrain Following: Maintain altitude over varied terrain for rescue or mapping missions.
Smart Cruise & FlyTo: Long-distance or rapid-response flights with minimal manual input.
Smart Track & POI: Automatic target locking and 3D point-of-interest orbiting.
Ship-Based Takeoff/Landing: Precision control for offshore and mobile operations.

Seamless Mission Planning
Power Line Tracking with Zenmuse L2: Automate power grid inspections.
Slope & Geometric Route Planning: Capture vertical or inclined surfaces efficiently using DJI Pilot 2 or FlightHub 2.

Enterprise Accessories & Power Solutions
DJI RC Plus 2 Controller: Ultra-bright display, IP54-rated, with extended temperature range and hybrid O4/4G connectivity.
DJI Cellular Dongle 2: Maintains strong connections in complex environments.
TB100 Intelligent Battery: 400-cycle lifespan, optimized for performance in low temperatures.
TB100C Tethered Battery: Ideal for fixed lighting or communication station use.
BS100 Charging Station: Charges 3x TB100 & 2x WB37 batteries in under 45 minutes.
D-RTK 3 Mobile Station: Centimeter-level positioning and rover mode support for survey-grade accuracy.

Software Ecosystem for Industry
DJI FlightHub 2
Cloud-based platform for remote control, flight planning, live coordination, and multi-drone management.

DJI Terra
Advanced 2D/3D reconstruction and LiDAR data processing software for land surveying, construction, and utility inspection.

DJI Modify
Streamlines point cloud and 3D mesh editing for survey and AEC professionals.

Developer Ecosystem & Data Security
Open SDKs: Full support via PSDK (Payload SDK), MSDK (Mobile SDK 5), and Cloud API for integration with custom apps and workflows.
Data Access APIs: Utilize LiDAR, radar, and optical data for custom analytics and AI training.
Enterprise-Level Data Security: AES-256 video encryption, local data mode, one-tap log deletion.

Applications
Power Line & Grid Inspection
Emergency Response (SAR, Firefighting)
Urban Planning & AEC

Environmental Monitoring
Offshore & Maritime Operations
Large-Scale Mapping & Surveying

Unlock the full power of the DJI ecosystem with the Matrice 400—engineered for performance, built for the extreme.

In the box:
1x Matrice 400
1x RC Plus 2 Enterprise Enhanced
1x RC Plus 2 sub2G SDR Module
1x RC Plus 2 Strap and Bracket Kit
1x Matrice 400 2510F Propeller
1x Matrice 400 Gimbal Damper
1x Matrice 400 Carrying Case
1x Rotating LiDAR Calibration Cover
1x Front Propeller Holder
1x Rear Propeller Holder
1x USB-C to USB-C Data Cable
1x WB37 Battery
2x E-Port V2 Rubber Port Cover
4x Rubber Plug Screws (2×2)
1x Screws and Tools
1x Cleaning Tools
