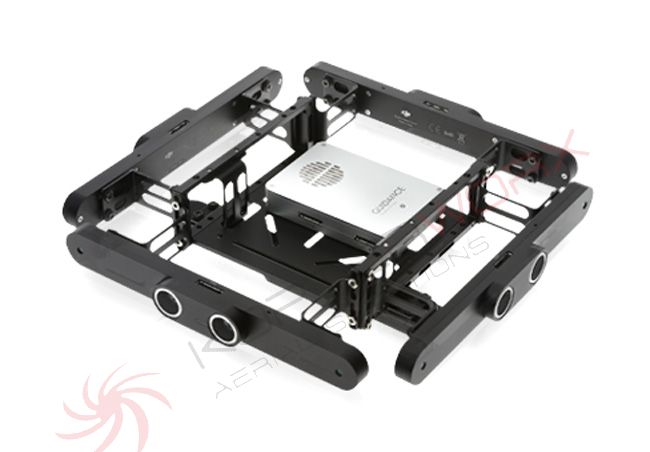

DJI Guidance Sensor Module ultrasonic / camera / collision protection
.
Preorder - available after 1.7.2015
Physical Parameters
| Dimensions | Guidance Core: 78.5 mm x 53.5 mm x 14 mm |
| Guidance Sensor: 170 mm x 20 mm x 16.2 mm | |
| VBUS Cable: 200mm |
| Weight | Guidance Core: 64 g |
| Guidance Sensor (single): 43 g | |
| VBUS Cable (single):11.6g |
Performance Parameters
| Velocity Detection Range | 0~16 m/s (From the ground 2 m) (The measurement shall prevail) |
| Velocity Detection Accuracy | 0.04 m/s (From the ground 2 m) |
| Positioning Accuracy | 0.05 m (From the ground 2 m) |
| Effective Sensor Range | 0.20 m ~ 20 m |
| External Requirements | Good lighting, exture-rich surface with clear patterns |
Hardware Parameters
| Power Consumption | Max. 12 W (with all five Guidance Sensors) |
| Input Voltage | 11.1 V~25 V |
| Operating Temperature | -10°C ~ 40°C |
| System Interfaces | VBUS x 5 |
| CAN x 1 | |
| USB OTG 2.0 x 1 | |
| UART x 1 | |
| UART Level | 3.3V |
