DJI FlyCart 100

Inquiry request on +386 74901100 or support@kopterworx.com

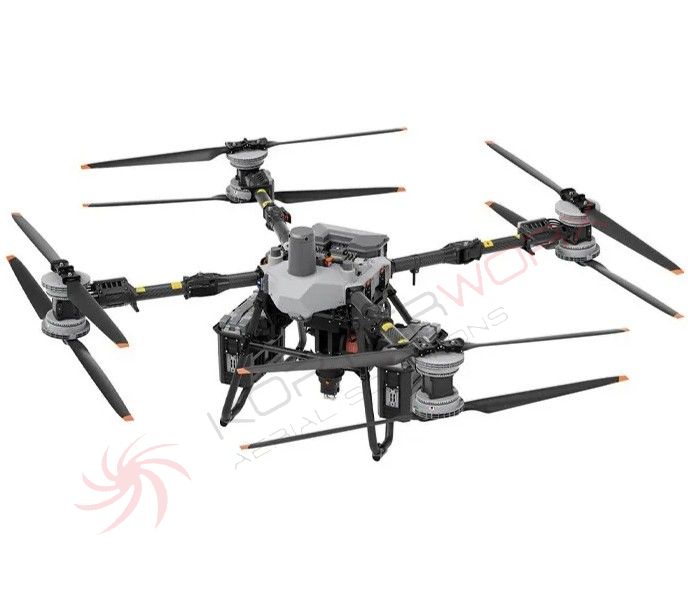

DJI FlyCart 100 – Heavy-Lift Delivery & Logistics Drone

The DJI FlyCart 100 is a next-generation industrial delivery drone engineered for professional logistics, heavy-lift transport, and mission-critical operations. It combines exceptional payload capacity, advanced safety systems, and flexible mission performance for challenging environments.

Key Features & Performance:

• Impressive Payload Capacity: Up to 85 kg with dual batteries and up to 100 kg with a single battery configuration, offering unmatched heavy-lift capability for its class.

• Extended Range: Maximum flight distance of 12 km at a takeoff weight of 149.9 kg, enabling long-range delivery missions.

• Powerful Thrust: Up to 82 kg single-axis thrust with enhanced power efficiency.

Advanced Flight & Safety Systems:

• Coaxial Dual-Rotor Design: Ensures stable and reliable performance with propulsion redundancy.

• 62-inch Carbon Fiber Propellers: Optimized for rigidity, lighter weight, and improved aerodynamic efficiency.

• Robust Motors & ESC: High-torque motors with 420 A ESC deliver fast response and consistent power.

• Integrated Safety Perception: Combines LiDAR, Penta-Vision sensors, and millimeter-wave radar for comprehensive environment awareness and obstacle detection.

• Optional Parachute System: Enhances emergency safety by slowing descent if needed.

• IP55 Rating: Dust and water resistance for reliable operation in demanding conditions.

• Wide Operating Conditions: Functional in wind speeds up to ~12 m/s and temperatures from –20 °C to +40 °C.

Payload Handling & Mission Flexibility:

• Flagship Winch System: Features a 30 m retractable cable with wireless charging, electric hook control, high-speed release/retrieve, real-time weighing, and audible/visual alerts for safer and more efficient delivery without landing.

• Dual Payload Support: Compatible with the DJI FlyCart 100 Winch System and DJI Dual-Battery Lifting System for flexible load configurations tailored to mission needs.

Software & Operational Tools:

• One-Stop Software Solution: Includes mission planning, pilot tools, and delivery operations management via the new DJI Delivery App and DJI DeliveryHub platform.

• Controller: Uses the RC Plus 2 with a high-brightness display and supports Dual Controller Mode for cooperative operation.
