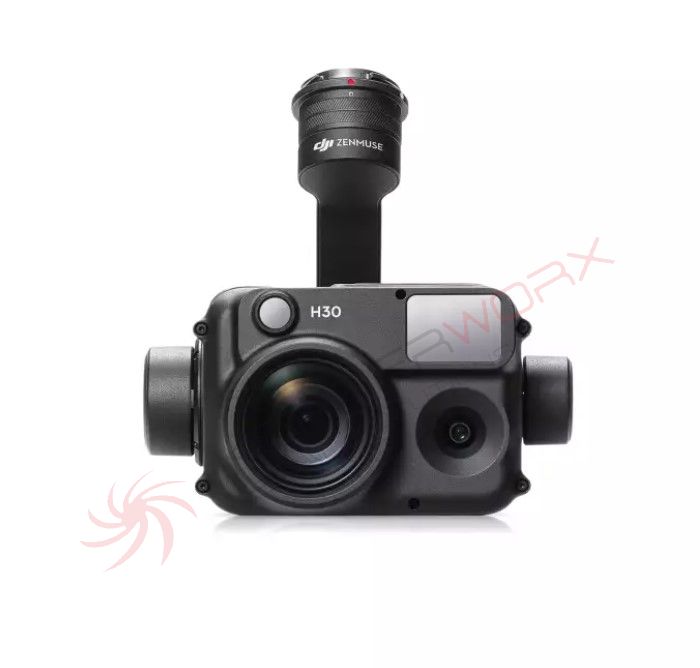

DJI Zenmuse H30 + 2 year Care

DJI Zenmuse H30 Series

Superior visibility in any light

The versatile all-weather flagship of the Zenmuse H30 series features five main modules: a wide-angle camera, a zoom camera, an infrared thermal imaging camera, a laser rangefinder and an NIR auxiliary illumination. By using the latest intelligent algorithms, it revolutionizes perception and imaging standards and overcomes the limitations of day and night vision, making it effortlessly suitable for a wide range of applications such as public safety, energy monitoring, water protection and forestry.

Versatile performance, day and night

Zoom camera

• Up to 34x optical zoom‌ and 400x digital zoom‌
• 40MP 1/1.8-inch CMOS sensor
• Video resolution: Max. 3840 ×2160 at 30fps

Wide angle camera

• Equivalent focal length: 24mm, DFOV: 82.1°
• 48MP 1/1.3-inch CMOS sensor
• Video resolution: Max. 3840 × 2160 at 30 fps

Laser rangefinder

• Measuring range: 3 to 3000 m
• Measuring accuracy: ≥ 500 m: ±(0.2 m + measuring distance x0.15 %) > 500 m: ±1.0 m

Infrared thermal imaging camera (only for H30T)

• Equivalent focal length: 52 mm, DFOV: 45.2°
• Uncooled VOx microbolometer
• Photo resolution: 1280 × 1024
• Video resolution: 1280 × 1024 at 30 fps
• Temperature measuring range from -20 °C to 1600 °C (-4° to 2912° F) (with infrared filter)

NIR additional lighting

• Wavelength: 850 nm
• Field of view: 4.6 ± 0.6° (round)
• Safety class: Class 1
• Range of lighting: Circle with approx. 8 m diameter at 100 m distance

Wider and clearer view

Up to 34x optical zoom‌ and 400x digital zoom‌

The Zenmuse H30 series features a high-resolution 40MP zoom camera that supports up to 34x optical zoom and an impressive 400x digital zoom. Compared to the previous generation, it not only captures objects at a greater distance, but also captures more details.

More stable shots with the zoom camera
With DJI's latest image stabilization algorithm, the Zenmuse H30 series can effectively reduce camera shake in telephoto shots and deliver stable and clear images for detailed inspections of high-voltage lines.

Max. 3000 m ‌Laser Rangefinder
The laser rangefinder has a measuring range up to 2.5 times larger than the previous generation and precisely records the position data of objects in a range of 3 m to 3000, including the linear distance to the camera, the altitude and the GPS coordinates.

Improved night vision

Full-color night vision‌
The Zenmuse H30 series zoom and wide-angle cameras can switch to night mode in low-light conditions to improve live view and recording quality. This ensures efficient and precise use at night and enables continuous operation from day to night.

Supports Black and White Night Vision and NIR Illumination
In night mode, the Zenmuse H30 Series zoom camera supports IR light for infrared enhancement and NIR illumination. It switches the live feed to a grayscale image by removing the infrared filter, enhancing the contrast between light and dark areas, making it easier to locate objects. When NIR auxiliary illumination is enabled, the zoom camera can benefit from additional NIR illumination, which is especially helpful in covert night surveillance and search and rescue operations.

Stronger infrared performance

1280 × 1024 Infrared Resolution
The infrared thermal imaging camera offers a resolution of 1280 × 1024, four times that of the previous generation, and up to 32x digital zoom. This allows both an overview of the entire environment and the ability to zoom in on specific areas. At higher zoom levels, the Zenmuse H30T automatically activates an Ultra High Resolution (UHR) function to ensure that the infrared images remain sharp.

High-resolution mode for precise observation‌‌
The Zenmuse H30T supports three infrared amplification modes: The high-gain mode enables more precise temperature measurements, while the low-gain mode covers a larger temperature measurement range. In addition, there is the new high-resolution mode, which is particularly suitable for observing objects, people or animals with small temperature differences. This makes it extremely practical for use in security, emergency and rescue services.

Visual and IR cameras, simultaneous zoom
The Zenmuse H30T's zoom camera and infrared thermal cameras support link zoom, which allows the user to scale the visible light and thermal images simultaneously while maintaining the same angle of view. This direct comparison of image details helps locate the object faster, increasing efficiency while
saving effort.

Temperature measurement range from -20 °C to 1600 °C (-4° to 2912° F)
By incorporating an IR neutral density filter, the infrared thermal imaging camera can measure temperatures of up to 1600 °C (2912 °F), which is three times that of the previous generation. This enables more effective assessment of temperature changes and rapid localization of fire sources, increasing the efficiency of rescue efforts during firefighting and high-temperature operations.

Smarter multi-scenario operations

Smart Capture for improved image capture
In Smart Capture mode, the Zenmuse H30 series zoom and wide-angle cameras automatically determine the brightness of the ambient light and the dynamic range and apply intelligent image algorithms. This guarantees the output of photographs with natural transitions between light and dark and rich details, even in high dynamic, strong or low light environments.

Electronic Defogging
The Zenmuse H30 Series zoom camera uses a new electronic defogging function to improve image clarity in situations such as smog or high humidity. It allows low and high levels of defogging to meet different deployment environments and requirements.

More reliable synchronization Storage of information

Supports pre-recording‌
All Zenmuse H30 series cameras, including the zoom, wide angle and infrared thermal cameras, support pre-recording. You can keep 10, 15 or 30 seconds of footage before the actual recording begins to ensure a more complete recording and capture important information that
could otherwise be quickly lost.

Media and transmission encryption with 1-click log deletion‌
The security code function enables encryption of microSD cards and fully protects your files. The AES-256 encryption technology ensures the security of data transmission between the remote controller and the aircraft. In addition, it supports one-click log deletion to prevent information leakage.

Cloud Information Sync ‌for collaborative ground and air operations
Users can access live views of the Zenmuse H30 series via the DJI FlightHub 2 cloud platform to stay up to date on the situation on site. This enables fast remote control and facilitates coordinated air-ground operations.

Excellent adaptability to the environment

Protection class IP54
The Zenmuse H30 series is dust and waterproof according to IP54 and can therefore be operated safely and reliably even under difficult conditions.

Operating temperature -20 to 50 °C (-4° to 122° F)
The Zenmuse H30 Series is designed for use in temperatures from -20° to 50° C (-4° to 122° F) and meets the requirements of all-weather operation.

Application scenarios
With the DJI Enterprise flight platforms, the Zenmuse H30 series is suitable for applications in a range of industries, such as public safety, power, oil and gas, water conservation and forestry.

Compatibility
Matrice 300 RTK (requires the DJI RC Plus)
Matrice 350 RTK
