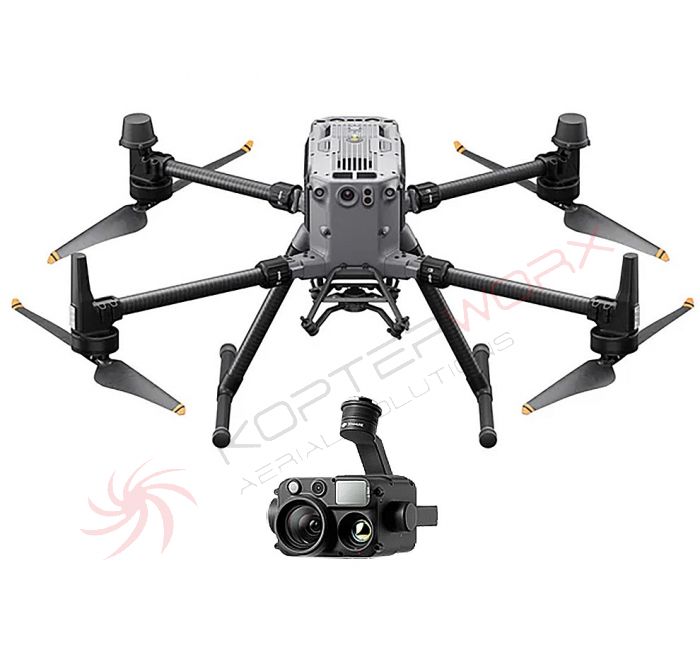

DJI Matrice M350 RTK + H30T (Bundle) +2 year Care
DJI Matrice M350 RTK + H30T (Bundle)
Matrice 350 RTK is much more than an upgrade of a flagship. This next-generation drone platform will once again set new standards for the entire industry. This is ensured by the renewed video transmission system, the completely new control system, the more efficient battery system, more extensive safety functions and absolutely robust payload and expansion options. Experience an innovative force that unfolds anew with each of your aerial missions.
- 55 min. max. flight time
- Protection class IP55
- DJI O3 Enterprise Transmission
- DJI RC Remote Control Plus
- 400 battery cycles
- Sensors & positioning in 6 directions
- Night vision FPV camera
- Supports multiple payloads
Effortlessly powerful flight performance
The robustly built Matrice 350 RTK has a powerful drive, a higher protection class and absolutely outstanding flight characteristics to overcome even the most diverse challenges with ease.
- Max. flight time: 55 min.
- Protection class: IP55
- Max. payload: 2.7 kg
- Max. wind resistance: 12 m/s
- Operating temperature: -20 °C to 50 °C
- Max. flight altitude: 7,000 m
Always stable thanks to the new
O3 Enterprise Transmission
system The 350 RTK comes with the DJI O3 Enterprise Transmission System, which supports 3-channel 1080p HD live feeds and a transmission range of up to 20 km. Both the aircraft and the remote control have an intelligent 4-antenna transceiver system that can automatically select the two optimal antennas for signal transmission, while all four antennas receive signals simultaneously. This significantly improves the anti-interference ability and transmission stability.
New controls, more options
DJI RC Remote Control Plus
The DJI RC Plus is equipped with a bright 7-inch screen, supports dual operating modes and comes standard with an external WB37 battery that offers a running time of up to six hours, covering a wider range of demanding requirements.
Ready for extreme conditions
With an IP54 protection rating, the DJI RC Plus is dust and waterproof and works extremely reliably even in bad weather. The operating temperature is -20 ° to 50 ° C, which enables operations around the clock, even in very hot or cold environments.
Smooth and efficient control
Multiple buttons and knobs on the front, back and top of the remote control ensure the fastest possible operation in use. Button functions can also be individually adapted to the user's habits, enabling even more intuitive control.
DJI Pilot 2
The DJI Pilot 2 app has been further optimized to show the type of operation and flight status even more clearly. The simple and smooth control of the aircraft and payload ensures even more efficient operations. Improved battery system New dual system The Matrice 350 RTK is equipped with the new, dual TB65 battery system, which supports hot-swapping and enables multiple flights without switching off. The battery can be charged for up to 400 cycles, which significantly reduces the cost per single flight. Next-generation charging station The intelligent BS65 battery charging station is a new all-in-one solution for charging, storage and transport. Multiple charging modes Storage mode charges to 50%, which is optimal for long-term storage. Flight standby mode quickly charges multiple battery packs to 90% to be ready to start operation at any time while extending battery life. Intelligent management. When the battery charging station is connected to DJI RC Plus, the DJI Pilot 2 app displays the battery level and function status. In addition, you can set the number of self-discharge days, update the firmware, export logs, and access other quick operations with a single tap.
Effortless movement
The battery charging station is equipped with 360° wheels for more convenient transportation and position changes.
Improved flight safety
Arm lock detection
The Matrice 350 RTK comes with a new lock detection function that prevents the risk of unlocked frame arm cuffs, so you can concentrate on every flight with even more peace of mind.
Night vision FPV camera
Thanks to its excellent night vision capabilities, the FPV camera clearly recognizes its surroundings and obstacles during a night flight. Combined with the PinPoint function, it also enables better navigation for even safer flights and easier operation at night.
Sensors & positioning in 6 directions
The Matrice 350 RTK is equipped with a binocular vision system and an infrared sensor system for detection, positioning and obstacle avoidance in six directions, thus offering comprehensive protection during flight.
CSM radar (Circular Scanning Millimeter Wave Radar)
With the installed CSM radar, the Matrice 350 RTK can detect subtle obstacles in the upper area or within the horizontal 360° area and avoid them in time. The effective detection range is up to 30 m, which further improves flight safety.
Multi-layered redundancy system
Both the aircraft system and the sensor system of the Matrice 350 RTK have a redundancy concept that ensures maximum flight safety, so that even demanding operational environments can be mastered safely.
Powerful payloads
The Matrice 350 RTK supports single downward gimbals, dual downward gimbals and single upward gimbals and also offers an open E-Port interface. With a maximum payload of 2.7 kg, the aircraft can carry up to three loads simultaneously, meeting the requirements of various operational scenarios such as public safety, inspection and mapping.
Zenmuse H20 Series
To ensure excellent detection and imaging performance, the zoom camera, wide-angle camera, thermal camera and laser rangefinder work together in a four-sensor system - complemented by advanced and intelligent algorithms.
Zenmuse H20N
The Zenmuse H20N integrates starlight sensors into its zoom and wide-angle cameras. Together with dual-zoom thermal cameras and a laser rangefinder, it becomes a versatile hybrid payload that can handle any challenge.
Zenmuse P1
The Zenmuse P1 combines a full-frame sensor with interchangeable fixed-focus lenses with a 3-axis stabilized gimbal. It is designed for photogrammetric flight operations and takes efficiency and accuracy to a new level.
Zenmuse L1
Zenmuse L1 combines a Livox Lidar module, a high-precision IMU and a mapping camera. When combined with the flight platform, it becomes a complete solution that continuously delivers real-time 3D data, efficiently captures details of complex structures and delivers highly accurate reconstructed models.
Third-party extensions
Individual payloads, such as gas detectors, loudspeakers and multispectral sensors, can be combined with Matrice 350 RTK via the DJI Payload SDK to expand its application fields.
Intelligent Operation
High-precision mapping
Matrice 350 RTK supports waypoint, mapping, oblique survey missions and linear flight operations. You can use Terrain Follow or Intelligent Oblique Survey for efficient data collection. Together with DJI Terra, they quickly obtain HD 2D and HD 3D digital results to enable highly accurate and efficient mapping operations.
Air-Ground Coordination
With features such as high-precision PinPoint and cloud-based real-time mapping, Matrice 350 RTK connects the air, ground and cloud. After the aircraft completes image collection, DJI FlightHub 2 quickly models the operation site and transmits command information to the aircraft and operators on the ground. Both the remote controller and FlightHub 2 support point, line and surface drawing and real-time upload, and can interact with the aircraft to live stream the real-time mission view and overcome communication barriers for air-ground cooperation operations.
Automated Precision Control
Using live mission recording, the Matrice 350 RTK can generate and save flight route files that can be used at any time to perform automated operations and eliminate the time and effort required for repeated inspections. When using AI Spot-Check, the Matrice 350 RTK supports automatic cropping and manual adjustment of subjects to improve the accuracy of repeated shots and the quality of inspection operations.
Comprehensive Accessories
DJI RC Remote Controller Plus
The DJI RC Plus features a 7-inch screen with a brightness of up to 1,200 nits and multiple buttons for smooth and convenient control. It comes with a standard WB37 external battery and supports battery hot swapping. It can operate for up to 6 hours when combining internal and external batteries.
CSM Radar (Circular Scanning Millimeter-Wave Radar)
The CSM radar can be mounted on the drone to further ensure flight safety. The effective detection range is up to 30 m. The radar can accurately detect subtle obstacles in the upper area or within the 360° horizontal range in order to avoid them in time.
BS65 DJI Battery Station
The new battery charging station is a complete solution for charging, storing and transporting the batteries. The new storage mode and flight standby mode increase charging efficiency and extend battery life. The new design of the 360° wheels makes transport and position changes easier.
Low-noise propellers for high altitudes
The low-noise propellers for high altitudes guarantee stable flight performance at high altitudes of 3,000–7,000 m, while the noise of the blades is reduced by 2 decibels compared to the 2110s standard propellers.
TB65 Intelligent Flight Battery
The TB65 Intelligent Flight Battery has high-performance cells and can be charged up to 400 cycles, reducing the cost per single flight. At the same time, the heat dissipation performance and the automatic heating system are improved.
User data security
- Encryption of media data
- Local data mode
- Tap once and delete all device data
- AES-256 encryption of video transmission
- Cloud API
Ecosystem
Payload SDK
Combine a variety of third-party industrial extensions with your drone: Such as gas detectors, loudspeakers, multispectral sensors, computing modules and much more. Payload SDK supports E-Port, SkyPort V2 and DJI X-Port, which significantly reduces the lifecycle of payload development and maximizes the potential of your payload in more diverse scenarios. E-Port supports Payload SDK V3 and newer versions and is compatible with third-party Payload SDK payloads from the Matrice 30 series.
Mobile SDK
With an extensive ecosystem of third-party apps, you can activate all the possibilities of your drone platform. They help you meet the requirements of your missions. The Mobile SDK allows you to customize missions with the Matrice 350 RTK in many ways through flexible app development.
Cloud API
With Cloud API, you can connect your Matrice 350 RTK directly to third-party cloud platforms via the DJI Pilot 2 app and access functions such as data transfer, live stream and flight route distribution.
Zenmuse H30 Series
Superior visibility in any light
The versatile all-weather flagship of the Zenmuse H30 series features five main modules: a wide-angle camera, a zoom camera, an infrared thermal imaging camera, a laser rangefinder and an NIR auxiliary illumination. By using the latest intelligent algorithms, it revolutionizes perception and imaging standards and overcomes the limitations of day and night vision, making it effortlessly suitable for a wide range of applications such as public safety, energy monitoring, water protection and forestry.
Versatile performance, day and night
Zoom camera
- Up to 34x optical zoom and 400x digital zoom
- 40MP 1/1.8-inch CMOS sensor
- Video resolution: Max. 3840 ×2160 at 30fps
Wide angle camera
- Equivalent focal length: 24mm, DFOV: 82.1°
- 48MP 1/1.3-inch CMOS sensor
- Video resolution: Max. 3840 × 2160 at 30 fps
Laser rangefinder
- Measuring range: 3 to 3000 m
- Measuring accuracy: ≥ 500 m: ±(0.2 m + measuring distance x0.15 %) > 500 m: ±1.0 m
Infrared thermal imaging camera (only for H30T)
- Equivalent focal length: 52 mm, DFOV: 45.2°
- Uncooled VOx microbolometer
- Photo resolution: 1280 × 1024
- Video resolution: 1280 × 1024 at 30 fps
- Temperature measuring range from -20 °C to 1600 °C (-4° to 2912° F) (with infrared filter)
NIR additional lighting
- Wavelength: 850 nm
- Field of view: 4.6 ± 0.6° (round)
- Safety class: Class 1
- Range of lighting: Circle with approx. 8 m diameter at 100 m distance
Wider and clearer view
Up to 34x optical zoom and 400x digital zoom
The Zenmuse H30 series features a high-resolution 40MP zoom camera that supports up to 34x optical zoom and an impressive 400x digital zoom. Compared to the previous generation, it not only captures objects at a greater distance, but also captures more details.
More stable shots with the zoom camera
With DJI's latest image stabilization algorithm, the Zenmuse H30 series can effectively reduce camera shake in telephoto shots and deliver stable and clear images for detailed inspections of high-voltage lines.
Max. 3000 m Laser Rangefinder
The laser rangefinder has a measuring range up to 2.5 times larger than the previous generation and precisely records the position data of objects in a range of 3 m to 3000, including the linear distance to the camera, the altitude and the GPS coordinates.
Improved night vision
Full-color night vision
The Zenmuse H30 series zoom and wide-angle cameras can switch to night mode in low-light conditions to improve live view and recording quality. This ensures efficient and precise use at night and enables continuous operation from day to night.
Supports Black and White Night Vision and NIR Illumination
In night mode, the Zenmuse H30 Series zoom camera supports IR light for infrared enhancement and NIR illumination. It switches the live feed to a grayscale image by removing the infrared filter, enhancing the contrast between light and dark areas, making it easier to locate objects. When NIR auxiliary illumination is enabled, the zoom camera can benefit from additional NIR illumination, which is especially helpful in covert night surveillance and search and rescue operations.
Stronger infrared performance
1280 × 1024 Infrared Resolution
The infrared thermal imaging camera offers a resolution of 1280 × 1024, four times that of the previous generation, and up to 32x digital zoom. This allows both an overview of the entire environment and the ability to zoom in on specific areas. At higher zoom levels, the Zenmuse H30T automatically activates an Ultra High Resolution (UHR) function to ensure that the infrared images remain sharp.
High-resolution mode for precise observation
The Zenmuse H30T supports three infrared amplification modes: The high-gain mode enables more precise temperature measurements, while the low-gain mode covers a larger temperature measurement range. In addition, there is the new high-resolution mode, which is particularly suitable for observing objects, people or animals with small temperature differences. This makes it extremely practical for use in security, emergency and rescue services.
Visual and IR cameras, simultaneous zoom
The Zenmuse H30T's zoom camera and infrared thermal cameras support link zoom, which allows the user to scale the visible light and thermal images simultaneously while maintaining the same angle of view. This direct comparison of image details helps locate the object faster, increasing efficiency while
saving effort.
Temperature measurement range from -20 °C to 1600 °C (-4° to 2912° F)
By incorporating an IR neutral density filter, the infrared thermal imaging camera can measure temperatures of up to 1600 °C (2912 °F), which is three times that of the previous generation. This enables more effective assessment of temperature changes and rapid localization of fire sources, increasing the efficiency of rescue efforts during firefighting and high-temperature operations.
Smarter multi-scenario operations
Smart Capture for improved image capture
In Smart Capture mode, the Zenmuse H30 series zoom and wide-angle cameras automatically determine the brightness of the ambient light and the dynamic range and apply intelligent image algorithms. This guarantees the output of photographs with natural transitions between light and dark and rich details, even in high dynamic, strong or low light environments.
Electronic Defogging
The Zenmuse H30 Series zoom camera uses a new electronic defogging function to improve image clarity in situations such as smog or high humidity. It allows low and high levels of defogging to meet different deployment environments and requirements.
More reliable synchronization Storage of information
Supports pre-recording
All Zenmuse H30 series cameras, including the zoom, wide angle and infrared thermal cameras, support pre-recording. You can keep 10, 15 or 30 seconds of footage before the actual recording begins to ensure a more complete recording and capture important information that
could otherwise be quickly lost.
Media and transmission encryption with 1-click log deletion
The security code function enables encryption of microSD cards and fully protects your files. The AES-256 encryption technology ensures the security of data transmission between the remote controller and the aircraft. In addition, it supports one-click log deletion to prevent information leakage.
Cloud Information Sync for collaborative ground and air operations
Users can access live views of the Zenmuse H30 series via the DJI FlightHub 2 cloud platform to stay up to date on the situation on site. This enables fast remote control and facilitates coordinated air-ground operations.
Excellent adaptability to the environment
Protection class IP54
The Zenmuse H30 series is dust and waterproof according to IP54 and can therefore be operated safely and reliably even under difficult conditions.
Operating temperature -20 to 50 °C (-4° to 122° F)
The Zenmuse H30 Series is designed for use in temperatures from -20° to 50° C (-4° to 122° F) and meets the requirements of all-weather operation.
Application Scenarios
With the DJI Enterprise flight platforms, the Zenmuse H30 series is suitable for applications in a range of industries, such as public safety, power supply, oil and gas, water conservation and forestry.
Compatibility
Matrice 300 RTK (requires DJI RC Plus)
Matrice 350 RTK
Scope of delivery:
1x aircraft
1x RC Plus
1x H30T
1x WB37 Intelligent Battery
2x landing gear
1x Matrice 350 RTK 2110s propeller (pair)
1x screws and tools
1x cleaning tools
4x replacement gimbal dampers
1x rubber connection cover (set)
1x carrying case
