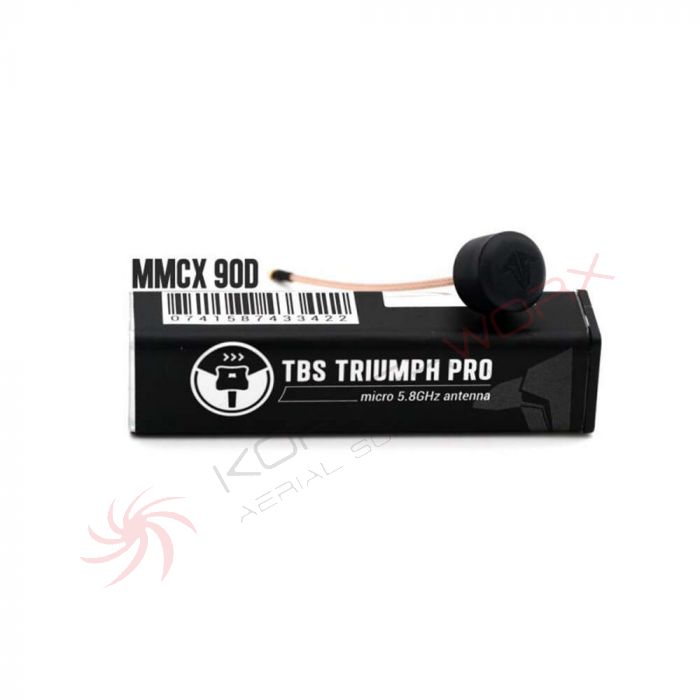

TBS Triumph Pro (MMCX)

The next revolution in circular polarization technology, the Triumph Pro gives professional performance in a compact, durable package. Don’t let the small size fool you, the Triumph Pro doesn’t compromise on performance. Designed by IBCrazy and manufactured by TBS, the multi-phase elements use patent pending technology to create a precise circular pattern that is not distorted by proximity to your aircraft or other objects.

The microstrip antenna design together with a rigid and ultrasonic-welded enclosure allow mounting in exposed places, where signal propagates better. The antenna comes in 4 connector flavors: u.FL, MMCX, MMCX 90º and SMA.

FEATURES:
Manufactured and tested to highest standards
Best in class range and signal quality
Incredibly small and low weight
Ultrasonic welded and foam infused cover for ultimate crash-protection
Double-jacket semi-rigid cable for heavy impact resistance

TECHNICAL SPECIFICATIONS:
Frequency range: 5500-6000MHz
Polarization: RHCP
Gain: 1.6dbic
Axial Ratio: 0.99
Cable: RG405/U
Weight: 2-3g
Height: 85mm, 3.3 in
Connector: MMCX
Dimensions (PDF)

PACKAGE CONTENTS:
1x TBS Triumph Pro MMCX
