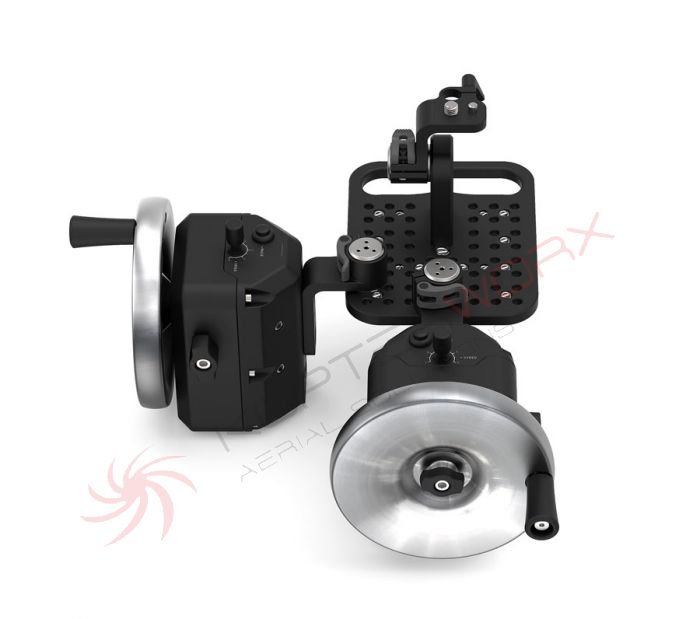

Movi Wheels - Two Wheel in Case

Out of stock / Not Available
SKU
FF-MW-2W
€3,219.58 €2,639.00

State-of-the-art wheel controller connecting cutting edge cinema robotics with classic controls.

Specifications

Performance
  • Long range wireless control
  • High speed plug n play CAN network
  • Break single wheel off, or setup with multiple for complex system
  • Compatible with entire Freefly Ecosystem (Requires Movi Controller, or MIMIC)
Mechanical
  • Robust machined enclosures
  • Versatile and adjustable mounting options
  • 25mm tool less adjustable mounting post
  • Integrated Rosette mounting option
  • Wheel position can be fine tuned for user preference
  • Friction lock allows user to define wheel friction / lock out wheel
Input
  • CAN
  • USB C
  • UART (5V)
  • Speed Knob
  • Pause Button
Output
  • CAN (12v)
  • USB C
  • UART
  • Tri color LED
Sensors
  • 16 bit magnetic encoder is robust, precise, and compact
Expandability
  • Daisy chain up to 9 modules (including pilot modules)
Software
  • Tuned to optimally control MōVI product line
  • User updatable firmware via internal mass storage drive
Usability
  • Quickly control wheel direction, gearing, or kill wheel
  • Designed for minimum latency
  • Absolute position control of MōVI pointing
  • Easily assign any wheel to any axis regardless of its connection
  • Mix wheels and pilot modules for maximum flexibility
Compatible with
  • Mimic
  • MōVI Controller (Requires MōVI Controller firmware version 3.7.0 or later)
  • Pilot
Controls
  • MōVI Pro
  • MōVI XL
  • MōVI Carbon
  • M5 / M10 / M15

IN THE BOX

MōVI Wheels (1 axis)

  • MōVI Wheel Module (1)
  • Quick Release 25mm Post
  • 1/4-20 Socket Head Cap Screw (2)
  • CAN Cable (250mm)
  • MōVI Controller to Wheel UART Cable (500mm)
  • MIMIC to Wheel UART Cable (300mm)
  • USB A to USB C Cable (1m)
  • USB C to USB C Cable (1m)

MōVI Wheels (2 axis)

  • MōVI Wheel Module (2)
  • Cheeseplate with MōVI Controller Mount Bracket
  • Quick Release 25mm Post (2)
  • 1/4-20 Socket Head Cap Screw (4)
  • CAN Cable (250mm)
  • MōVI Controller to Wheel UART Cable (500mm)
  • MIMIC to Wheel UART Cable (300mm)
  • USB A to USB C Cable (1m)
  • USB C to USB C Cable (1m)
  • 5/32" Driver
  • 3/16" Driver

MōVI Wheels (3 axis)

Includes all items listed for MōVI Wheels (1 axis) and MōVI Wheels (2 axis).

More info:
https://store.freeflysystems.com/collections/control/products/movi-wheels
