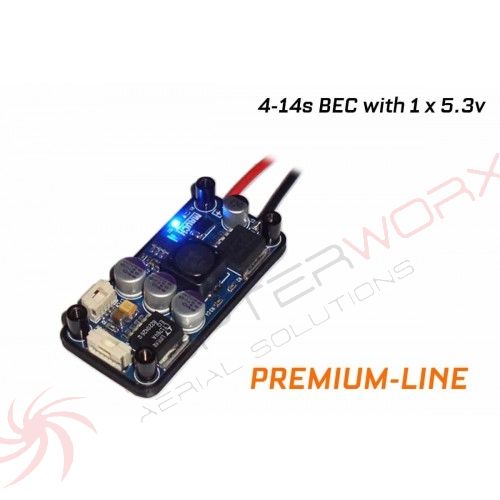

Mauch Premium Line PL 4-14S HYB-BEC / 1x 5.3V

Categories: Latest products | Mauch |
Product code: MAU2-021

Your price:

€49.10 Excl. Tax €59.90 Incl. Tax

4 product on stock
Description

Details

Input 4-14S LiPo / max. 60V.

  • Output 5.30V / 3A -> +/- 0.05V –> Ripple 1mV @ 1.5A output current.
  • Inclusive LDO power supply (+5.00V +/- 0.03V) for the sensor board PL-xxx as well as PL- Sensor Hub X2/X8 and output conector with Molex Clik-Mate 4p.
  • Blue power "ON' LED.
  • 59mm x 29mm x 13mm / 26g with enclosure(without cables)
  • Delivery in PP box: 55 x 55 x 20mm
  • Scope of delivery:
  • 1x  021: PL 4-14S HYB-BEC / 1x 5.3V / 3A
  • 1x  040: PL - Series sensor cable / L=150mm
  • 1x  Enclosure
  • REM: The BEC is delivered without an flight controller cable, so please selct the correct cable to match your FC:
  • 041: DF13-6p -> Pixhawk 1 / APM... etc.
  • 042: Molex Clik-Mate 2.0 - 6p -> Pixhawk 2.1
  • 043: JST-GH-6p -> Pixhawk 3... etc
