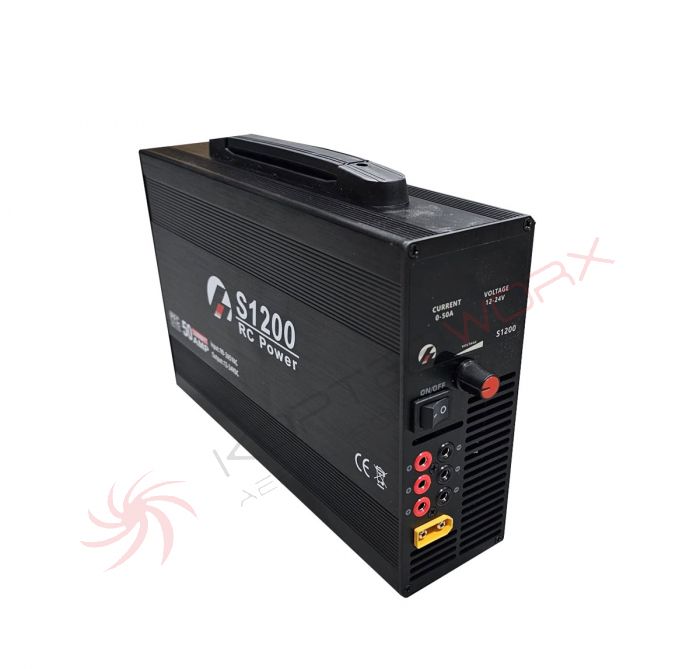

Icharger S1200 Power Supply (new version) 1200W
NEW iCharger S1200 (1200W) Power Supply 12-24v 50A, Small, Light and Powerfull.
The S1200 adjustable 1200W 24 Volt 50A Power Supply is a high efficiency power supply which is small and compact. Having a active PFC making a lower input current designed to save energy and increase reliability. It is one of the most advanced hobby-ready supplies you'll find anywhere. 1200W of output gives you all the power you need to run your high-powered application - or use it with multiple chargers at once using the three sets of integrated banana plug outputs!
An input voltage range of 90-265V makes it ready for worldwide use with no modification needed, and the DC output is just as flexible, simply turn the dial to adjust the voltage to suit your setup - digital readouts give you an instant look at your output voltage and current.
Active power factor correction and a compact frame makes this a great power supply to take to the field and use with a generator.
- Digital display output voltage and current on time.
- Over current, over voltage, over load and over temperature protection. Resume automatically when troubleshooting.
- Short-circuit protection on output, safer and more reliable.
- 3 Intelligent cooling fans turned on at over 50℃
- 3 outputs can do more chargers simultaneously.
- High power density: 521W/Kg
- Approved by CE
- Input Voltage: AC 110V/220V, 50/60Hz
- Range Voltage: AC 90-265V, 47~63Hz
- Max Current ： 15A @90VAC, 6.0A @ 220VAC
- Efficiency: 94% at 60% load and 220V.
- Active PFC: PF>0.99 at 90VAC, 100% of load
- Output Power: 1200W MAX.
- Output Voltage: 11.5V~24.5V adjustable
- Output Current: 0~50A(55A MAX.)
- Operating Temperature: 0~50℃
- Storage Temperature: -20~85℃
- Operating Relative Humidity: 5~95%RH
- Withstanding Voltage: AC 2000V(Min),5mA(Max)
- Insulation Resistance: DC 500V 100MΩ(Min)
- Dimension: 286*145*68 (mm, L*W*H) or 10.0*5.7*2.7 (inch)
- AC Plug: Customized according to your demand
- Case Material : AL alloy
- DC output : XT90 & three pairs of 4mm gold banana jack
- Net weight: 2.3Kg without input cable.
