Herkules III 3-6s Brushless ESC - OKTO XL long

Last one!
SKU
herkulesxliong
Special Price €793.00 €650.00 Regular Price €1,279.78
.

This edition is with longer cables and differente connectors for top/bottom motors. Its for bigger multirotors (hammer, NEO) and easier to connect the motors.

"Herkules III" is the latest generation of Control Electronic for Brushless Direct Current Motors (BLDC).
The Design was significantly reworked. More Power, better self-protection and an updated firmware for perfect flight stability.

The speciality of Herkules is the integration of 4 identical very powerfull brushless controller on one PCB. This minimizes wiring effort, safes space an weight and increases the reliability.

Main focus in development was the "design to robustness" of powerstages. Only high quality components are used in this product.

Voltage Range Battery Voltage: 9-26V (3-6S Lipo)
Current Capability 30A Dauer / 60A Peak per Motor (XL-Version)
Control Protocolls I2C and PPM protocoll up to 450Hz update rate
compatible with Mikrokopter BL1.2 and DJI WKM/NAZA, etc
Reaction Time Ultrafast reaction on setpoint changes due to active breaking with energy recuperation
Connection Interface Connection to FlightControl via Micromatch, Molex or Servo Connectors
Lowest Powerloss 100% Partload capable, lowest powerloss due to active freewheeling(total path resistance < 3mOhm)
Motor Timing 24°, 18°, 12° Programmable Commutation timing
PWM Frequency 8kHz to 16kHz PWM switching frequency programmable
RPM limit up to 240.000 RPM field rotation frequency (2-pole Motor)
upt to 200.000 RPM with Telemetry enabled
Robustness Stable, wide-band firmware capable of driving various brushless Motors
Protection Features Overload protction with Telemetry Feedback
Overcurrent, Overtemperature, Stall, Timtout
Telemetry Telemetryfeedback for PPM and I2C protocoll
- Mikrokopter BL1.2 (Current and Status)
- PPM via external Telemetry Interface board with datalogger (ESC single data, summary data, Altitude)
- Graupner HoTT, Jeti Duplex and standard Serial Protocoll
(Spectrum, JR, Hitec, Futaba, Multiplex coming soon)
Programmability I2C-Adresses 1-16, type of protocoll, timing, active freehweeling and firmware updatase programmable via USB-Interface
Variants Available as Quadro, Hexa and Oktokopter Variant
Ready to Fly assembled with battery and motor wires
Dimension/Weight Octocopter mit XL-Coolingplate: 150x150mm / 320g
High Quality 100% Made in Germany

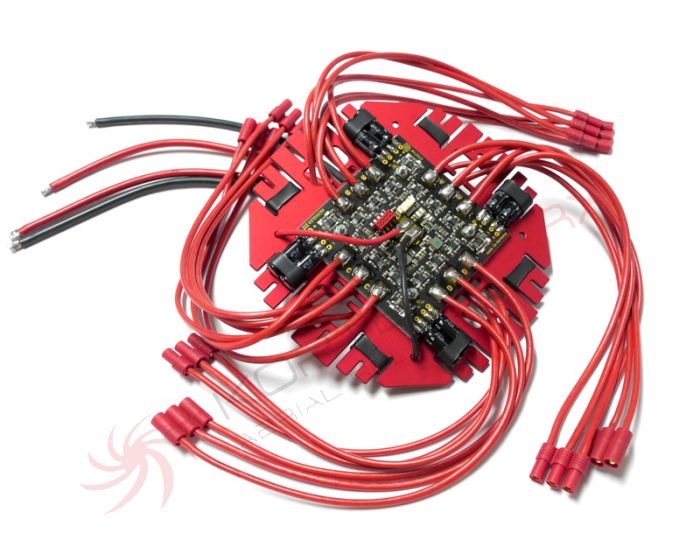

Herkules III as OktoVersion soldered with 2x 6mm² silocon batterywire and 8x3 soldered motorcables with 3,5mm connector

http://www.andreasbaier.de/index.php/en/herkules-iii-generation-3
