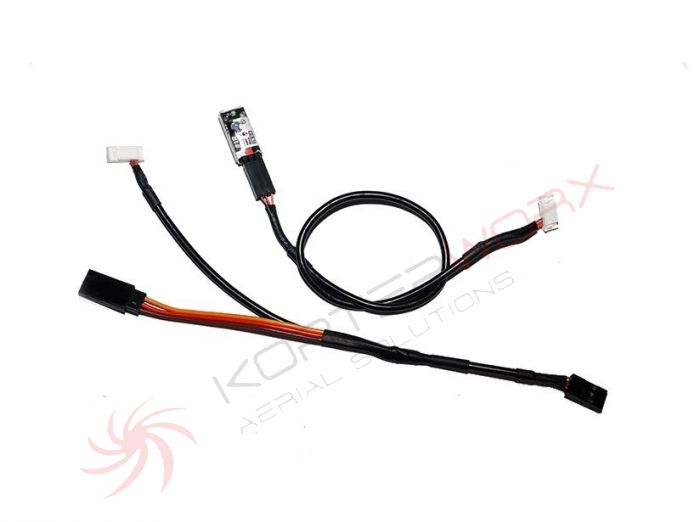

Gremsy S1V3 Seagull #IR & Cable Set

Infrared UAV Camera Trigger
Seagull #IR supports the following modes:
• Picture ( Shutter release action )
• Video Record (NOTE: Only works with capable Sony cameras)
* Only support for S1V3, T3V3, T7

IR - Speed of Light

No viable tethered solutions to trigger your camera? Does your camera feature infrared receiver?
Don’t worry Seagull #IR got you covered, it gives control of your cameras shutter via infrared commands.
#IR will work with Sony, Nikon, Canon and Olympus cameras that are able to be triggered by an infrared remote.

NOTE: Seagull #IR will work with all cameras listed – no matter which model your order it for!



The following hardware is supported

Flight Controllers:

• Pixhawk 1
• Pixhawk 2.1
• Pixracer
• APM 2.6
• APM 2.5
• DJI Wookong
• DJI A2
• DJI A3

R/C radio systems:

• That interfaces with standard PWM signal (almost any radio system)
  – and many others with camera support

Specifications
Details for this product

• Voltage: 3.5 – 5.5 volts ( 5 volts recommended, do NOT exceed 5.5V! )
• Current draw: 22.5mA MAX
• Input signal: Standard R/C PWM servo signal ( between 1000 – 2000uS )
• Dimensions: 23.5 x 9.8mm x 4.4 mm
• Weight: 1g ( ~4g with servo cable )

Supported Cameras: HERE
Manual: HERE
