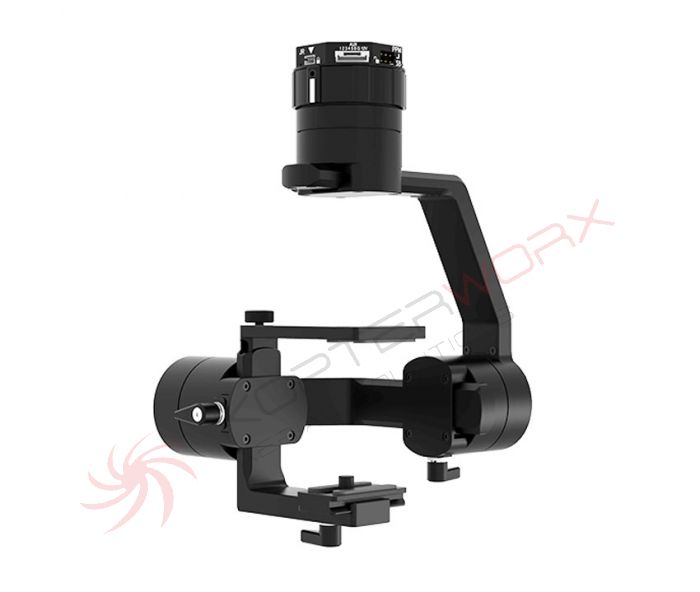

Gremsy PIXY U
Inheriting the superior technology of Pixy series, Pixy U pushes the boundaries of what professionals can accomplish with a commercial gimbal. This compact stabilizer can carry universal dedicated cameras regardless of its modest size and one pound optimized weight. Besides, Pixy U is fully Compatible with Pixhawk & DJI FC to support autonomous flight and camera control, making it a comprehensive solution for aerial survey, inspection, mapping, and so on.
| Product Name |
PIXY U |
|---|---|
| System Type |
3-Axis Camera Stabilizer |
| Weight |
1 lb (0.45 kg) |
| Construction |
All Aluminum |
| Input Voltage |
14-52V (Including UBEC) |
| Connection |
USB 2.0, CAN, UART, S-bus, Spektrum, PPM |
| OS Platform Supported |
Windows 7 or above; Mac OS X 10.9 or above |
| Single Operator |
Lock Mode, Follow Mode, Mapping Mode |
| Dual Operator |
SBUS / Spektrum / PPM/ Lightbridge 2 |
| Pan Range |
Pan axis control: +330° to -330° |
| Tilt Range |
Tilt axis control: +135° to -45° |
| Roll Range |
Roll axis control: ± 45° |
In the box:
| PIXY U | x1 |
| PIXY Quick Release | x1 |
| Micro USB Cable | x1 |
| Pixy U - Auxiliary Cable 8-PIN | x1 |
| Sbus Cable | x1 |
| Pixy U - Module Bluetooth& Cable For DJI( A3, N3) | x1 |
| Pixy U - Cable For Pixhawk | x1 |
| Pixy U - UBEC | x1 |
| Bolt Hexagon Socket M2.5x5 | x8 |
| Camera Bolt 1/4"-20 | x2 |
| Allenkey 2.mm | x1 |
| Camera plate standard | x1 |
