Flowcine Black Arm + Tranquilizer + Pro Case

Delivery date is 5-6 weeks after placing order.

A must have product for Movi XL.

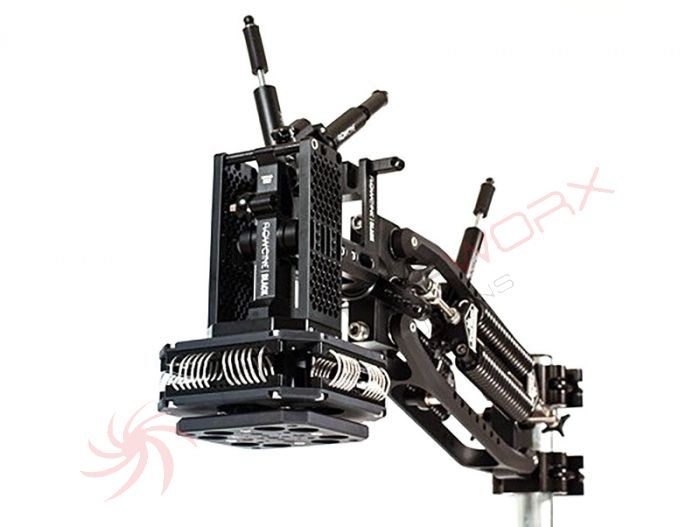

The Black arm is a 3-axis dampening system with a additional vibration mount for stabilizing roll and tilt errors as well as vertical motion and vibrations. The Black arm is a hardmount system, made for gimbals, that you want to mount on vehicles such as cars, ATVs, boats, snowmobiles etc.

The Black Complete ships with four 7.0mm springs and four 7.5mm springs, that takes the entire range of 5-32kg. You can use the springs in single (one spring on each side) or dual (two springs on each side) configuration, to precisely achieve the lift needed.

Each Black arm ships with one anti-vibration mount (AVM). The main purpose of the AVM is to reduce high frequency vibrations, such as noise from a cars engine. In order to maximise the efficiency of the AVM, you should use the version that matches your load and conditions.

Tranquilizer weight ranges:

• Shore 20 weight range: up to 5.40 - 10.75kg
• Shore 30 weight range: up to 6.70 - 13.25kg
• Shore 40 weight range up to 11.25 - 22.50kg
• Shore 50 weight range up to 13.75 - 27.50kg
• Shore 60 weight range up to 19.00 - 34.50kg

CASE

The Pro case is made in all-black, to perfectly match the Black arm. It features powder coated black metal corners, heavy duty recessed handles and butterfly catches. It also has wheels, so you can roll the case just like a cabin bag. To match the clean exterior, the foam in the Pro case is all black.

MOUNTING OPTIONS

Mounting the Black arm is as simple as clamping it on to a standard 48-52mm speed rail. You build a rig onto your vehicle, using standard grip components like speed rail and dual clamps, possibly using Flowcines Universal rack or Stub mount. Then you simply clamp the Black on there, with the two single clamps at the back of the arm.

There are several ways to attach your gimbal to the Black arm. The included base plate has hole patterns to match the Freefly Toad in a hole and Cinemilled Universal Ronin mount for easy attachment of the MoVI and Ronin gimbals. We also make a Mitchell female mount for gimbals that uses the Mitchell connector.

On each side of the Blacks head, there are cheese plates suitable to mount batteries or Kenyon gyros on.
