DJI Zenmuse H4-3D

2 on stock
SKU
zenmuseh43d
€369.00 €302.46
.

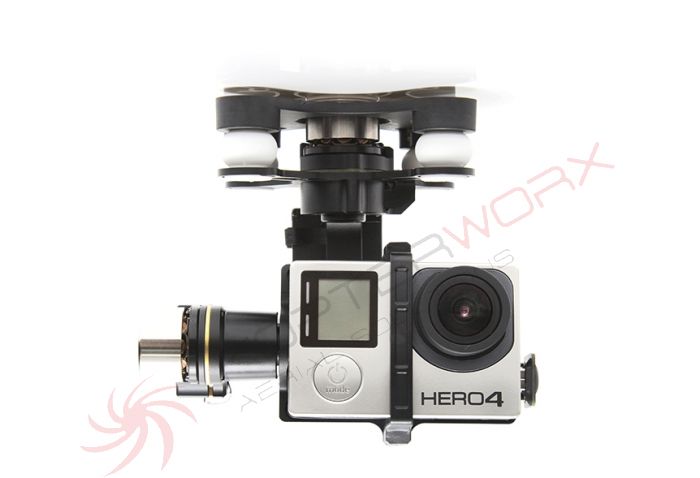

Zenmuse H4-3D

for standaolone operating u need to purchase DJI Zenmuse H4-3D GCU

Fly with your GoPro
Works with the GoPro® Hero4 Black camera.

Forget shaky, unusable aerial footage. Fly your GoPro® Hero4 Black with the Zenmuse H4-3D
gimbal and capture smooth, stable content like never before. Your camera is stabilized to prevent
unwanted roll, tilt, and pan motions, giving you the confidence to fly difficult maneuvers
and get the shots you want.



General
Features
  1. 3-axis gimbal
  2. High precision brushless servo control
  3. Aluminum alloy body
  4. Built-in IMU module
  5. Light-weight
  6. A2, WKM, NAZA-M, NAZA-M V2 ,PHANTOM 2 supported
  7. GoPro Hero4 Black supported
  8. Zenmuse technology
Peripheral
Supported Camera
GoPro Hero4 Black
GCU Input Power
3S~6S LiPo (12V~26V)
Assistant Software System Requirement
Windows XP SP3; Windows 7; Windows 8
Mechanical & Electrical
Gimbal Operating Current
  • Static current= 400mA (@12V)
  • Dynamic current= 600mA (@12V)
Gimbal Input Power
3S~6S (12V ~ 26V)
Operating Temperature
-10°C ~ 50°C
Gimbal Weight
168g (camera excluded)
Gimbal Dimensions (With Damping Unit)
103mm X 92mm X 80mm
GCU Weight
22g
GCU Dimensions
42 mm X 32 mm X 9.3 mm
Performance
Controlled Angle Accuracy
Pitch/Roll:±0.02°, Yaw: ±0.03°
Maximum Controlled Rotation Speed
Tilt axis: ±130°/s
Controlled Rotation Range
Tilt axis control: -130 ~ +45°
Regulatory Approvals
FCC (USA)
Yes
CE (EU)
Yes
RoHS (EU)
Yes
