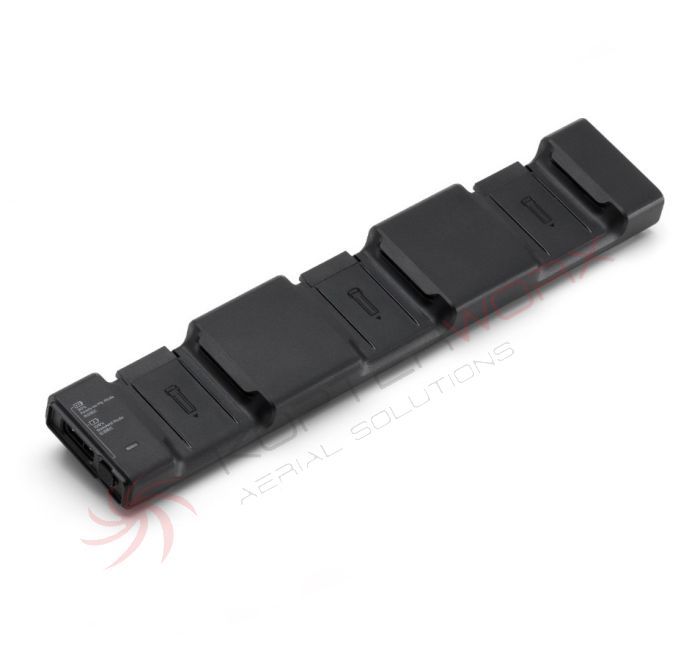

DJI Matrice 4 Series Charging Hub (200W)
DJI Matrice 4 Series Charging Hub (200W) is a professional battery charging solution designed specifically for DJI Matrice 4 Series Intelligent Flight Batteries. Built for enterprise drone operators, inspection teams, public safety organisations, surveying professionals and other users who require efficient battery management in the field, the hub can hold and manage up to three Matrice 4 Series batteries.
The charging hub charges batteries sequentially according to their remaining power level, starting with the battery that has the highest charge. This intelligent charging strategy helps operators return to flight as quickly as possible instead of waiting for all batteries to complete a charging cycle.
Two charging modes are available. Standard Mode sequentially charges each installed battery to 100%, making it suitable when maximum available flight time is required. Ready-to-Fly Mode charges each battery to 90% and maintains that level, allowing batteries to be prepared efficiently for rapid deployment. This is particularly useful for professional operations where aircraft may need to be ready at short notice.
The DJI Matrice 4 Series Charging Hub can be paired with the DJI 240W Portable Charger, model CDX230-240, for charging Matrice 4 Series Intelligent Flight Batteries. It can also be used with DJI Power 1000, providing a practical solution for charging batteries away from conventional AC power sources. This makes the system especially useful for field operations, inspections, mapping missions, emergency response and remote locations.
The hub is designed exclusively for the DJI Matrice 4 Series Intelligent Flight Battery, model BPX345-6741-14.76. Other battery models should not be installed or charged with this charging hub.
Its electrical input specification is 11.2–17 V with a maximum current of 12.1 A. The supported operating temperature range is 5°C to 40°C, allowing reliable operation across a wide variety of professional working environments.
An SDC Fast Charge Cable is included with the charging hub. This enables convenient integration with compatible DJI charging equipment and DJI Power solutions.
For operators using several Matrice 4 Series batteries during demanding missions, the DJI Matrice 4 Series Charging Hub (200W) significantly simplifies battery organisation and charging. Three battery slots, intelligent sequential charging and dedicated Standard and Ready-to-Fly modes make it easier to maintain an efficient battery rotation throughout the working day.
Whether Matrice 4 Series drones are being used for infrastructure inspection, surveying, mapping, search and rescue, security, firefighting or other enterprise applications, reliable battery management is an essential part of the workflow. DJI Matrice 4 Series Charging Hub (200W) provides an original DJI charging solution engineered specifically for this professional drone platform.
In The Box
Charging Hub × 1
SDC Fast Charge Cable × 1
DJI Matrice 4 Series Charging Hub (200W) je profesionalna polnilna postaja, izdelana posebej za Intelligent Flight Battery baterije serije DJI Matrice 4. Omogoča namestitev do treh baterij in inteligentno zaporedno polnjenje glede na njihovo trenutno napolnjenost.
Polnilna postaja najprej polni baterijo z najvišjim nivojem energije, kar omogoča hitrejšo pripravo prve baterije za naslednji polet. Na voljo sta dva načina delovanja. Standard Mode posamezne baterije zaporedno napolni do 100 %, medtem ko Ready-to-Fly Mode baterije napolni do 90 % in nato ohranja to raven. Slednji je posebej uporaben pri profesionalnih operacijah, kjer mora biti dron hitro pripravljen za ponovno uporabo.
Charging Hub je mogoče uporabljati z DJI 240W Portable Chargerjem, model CDX230-240, ter z DJI Power 1000, kar omogoča praktično polnjenje tudi na terenu.
Polnilna postaja je namenjena izključno bateriji DJI Matrice 4 Series Intelligent Flight Battery, model BPX345-6741-14.76. Deluje pri temperaturah od 5 °C do 40 °C.
DJI Matrice 4 Series Charging Hub (200W) je idealen dodatek za profesionalne uporabnike, ki uporabljajo več baterij in potrebujejo učinkovito organizacijo polnjenja pri inšpekcijah, kartiranju, geodeziji, varnostnih nalogah ter drugih zahtevnih operacijah.
