Overview
The XM2 Inspire 3 RC Plus Multi Mount allows professional pilots to attach an additional monitor to the DJI RC Plus controller, enabling simultaneous FPV and camera views during flight.
Designed specifically for the DJI Inspire 3 ecosystem and developed through real-world XM2 Cine operations, this mount improves situational awareness, reduces pilot workload, and streamlines on-set workflows — without compromising portability or transport.

Key Benefits
See More. Fly Better. Stay Focused.
The XM2 Inspire 3 RC Plus Multi Mount is built to solve a real operational challenge for professional pilots: managing FPV and camera views on a single screen.
• Maintain Full Situational Awareness
Keep both FPV and camera feeds visible at the same time, reducing head movement and mental load during critical flight moments.
• Faster, Safer Decision-Making
Eliminates the need to switch views mid-flight, helping pilots react faster and operate with greater confidence — especially in complex or fast-moving environments.
• Streamlined Professional Workflow
Reflects real-world Inspire 3 operating practices used by XM2 Cine pilots on commercial productions, reducing setup friction and improving consistency.
• Designed for Real-World Transport
Folds flat and remains installed when stored in the standard Inspire 3 travel case, reducing setup time on location and protecting your gear.
• Built for Long Days on Set
Lightweight, rigid, and stable — minimising fatigue while maintaining secure screen positioning during extended operations.

Features
• Simple Installation
Attaches securely using three existing threaded holes and braces against the handle for excellent stability.
• Adjustable Viewing Angle
Allows easy monitor angle adjustment with approximately 40 degrees of movement.
• Fits in the Case Without Removal
The mount folds flat for transport.
Note: A small indentation may appear in the top lid foam (approximately 5–10 mm). This can either settle naturally over time or be adjusted by removing a small section of foam if preferred.
• Lightweight Construction
Machined from aircraft-grade aluminium (6061-T6) with a durable hard black anodised finish.
• Compact Space-Saving Design
Protects both screens while keeping the controller compact during transport.
• Versatile Mounting Options
Includes multiple 1/4-inch mounting points compatible with a wide range of monitors, including DJI Transmission monitors (without metal cage).
• Improved Operational Safety
Reduces the need to switch views mid-flight, allowing pilots to stay focused on flying.
• Wide Compatibility
Supports a variety of monitors and SDI converters commonly used in Inspire 3 workflows.

Installation
The mount attaches to the RC Plus controller using:
• Two button-head bolts on the handle rail
• Three M3 × 8 mm cap head bolts

For best results, loosely fit all bolts first, then tighten gradually to avoid unnecessary strain.

Pilots frequently report difficulty using the small FPV window on the RC Plus controller and often need to switch between FPV and camera views. The XM2 Multi Mount solves this by providing a dedicated secondary display — allowing FPV to remain visible while the main camera feed is shown on the additional monitor.
The mount can remain attached while stored in the standard DJI Inspire 3 travel case, simplifying setup and pack-down between jobs.

Specifications
• Weight: 77 g
• Material: Hard anodised black aircraft-grade aluminium (6061-T6)
• Fasteners: M3 stainless steel hardware

What’s Included

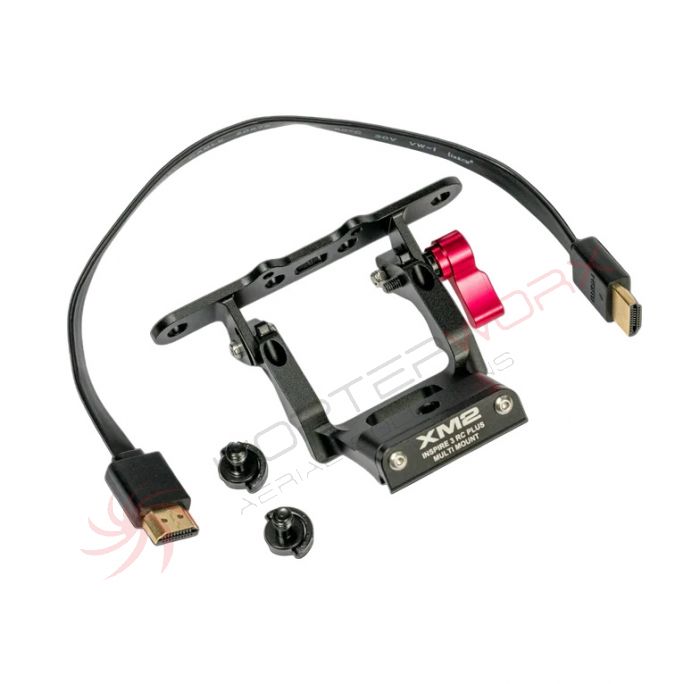

• XM2 Inspire 3 RC Plus Multi Mount
• HDMI 4K Cable
• Required mounting hardware
(Monitor and controller not included)
