AlexMos 32 BIT Extended / GBM8036-90T Encoder System Set 2000-6500g

Categories: New products | Alexmos boards / Sets | Gimbal Motors | AlexMos BaseCam Encoders |
Product code: IF-AE-GBM8036

Your price:

€539.95 Excl. Tax €658.74 Incl. Tax

6 product on stock

* Required Fields

€539.95 Excl. Tax €658.74 Incl. Tax

Description

Details

 AlexMos 32 BIT Extended BGC GBM8036-90T with Encoder System Set 2000-6500g

iFlight Original BaseCam SimpleBGC 32-bit Extended Gimbal Controller, it is built-in Frame IMU, a current sensor to measure battery power consumption, CAN-bus to replace I2C for the IMU sensor and other periphery connection

Features:
-Built-in Frame IMU
-Current sensor to measure battery power consumption
-CAN-bus to replace I2C for the IMU sensor and other periphery connection
-Dedicated 3x SPI/PWM ports for encoder connection
-Additional I2C port to connect 2nd IMU or encoders
-Built-in sound beeper
-Up to 6s LiPo battery is supported

Specifications:
-Size of the board:50×50 mm
-The distance between the mounting holes: 45mm
-The diameter of the mounting holes: 3 mm
-Power supply voltage: 8-26 V (3s-6s LiPo)
-Maximum motor current: 1,5 A
-5V output current to power external devices: up to 1 A
-3V output current:150 m

Features:
-Sealed Case to prevent contamination by dust and dirt.
-Hollow shaft for slipring
-Configuration:36N42P, prove more torque.

Motor Specs:
-Model NO.:GBM8036-90T
-Weight:492grams
-Motor Can Dimension: 90mm(OD) x 36mm(Height)
-Stator Dimension:81mm(OD) x 12mm(Height)
-Copper wire (OD):0.20mm
-Configuration: 36N42P
-Internal Resistance:11.7 ohms
-Pre-wound with 90 turns.
-Wire length: 450mm including JR plug
-Camera range (Torque): 4.5g-6.5kg
-Camera size: 4.5kg-6.5kg
-Voltage: 11.1V
-Current: 0.078A
-Rotational Speed: 38rpm

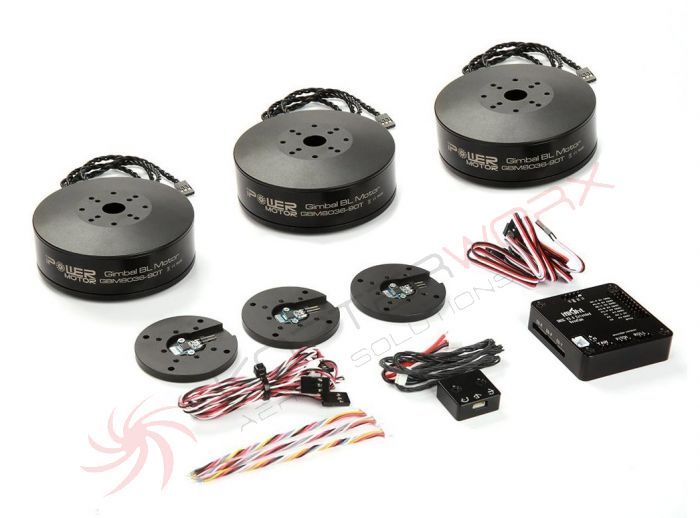

Package included:
- 3 x  iPower GBM8036-90T Gimbal Motor with encoders
- 1 x Alexmos 32BIT Extended BGC encoder set with alum case
- 1 x  Connecting cables set

Manual download: http://levitezer.com/styled-2/blog-2/files/72d28d8da53e386944cd0f0b42a017b6-29.html
