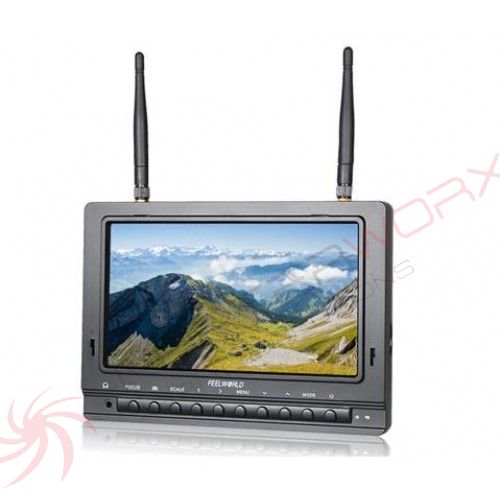

Feelworld 7" FPV 40-ch Ultra Bright (1000cd/m2) Diversity RX LCD DVR
7" high brightness 1000cd/m² Sun Readable FPV Monitor Built-in Battery Dual 5.8G 40CH Receiver & DVR PVR733
This FPV monitor is a medium sized 7" screen with a super bright LCD and 5.8GHz 40CH diversity receiver, DVR and built in rechargeable battery. Excellent choice for your FPV monitor, or as a secondary backup screen for your friends to watch. The 1000cd/m² is plenty of brightness for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. The built in DVR makes it easy to record your flights with a touch of a button, and the integrated rechargeagble battery keeps your FPV grounstation compact and easy to use. Easily watch back your recorded DVR footage straight from the monitor. This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don't want your screen to go blank when the video signal is weak.
Model PVR733
Screen Size: 7"
Surface Treatment: Anti-Glare matte screen
Resolution: 800×480 pixels
Pixe Pitch: 0.0642(W)×0.1790(H) mm
Aspect Ratio: 16:9
Brightness: 1000cd/m²
Contrast Ratio: 500:1
Backlight: LED
Viewing Angle: 70°/70°(L/R) 50°/70°(U/D)
Input
1X HDMI
1X RCA Video
1X RCA Audio
1X RF
Output
1X RCA Video
Audio
Audio Out: Stereo Headphone, Speaker
HDMI Support Format
480i /480p /576i /576p /720p /1080i /1080p (50/60Hz)
Video Support Format
PAL-4.43; NTSC-3.58
General
Built-in battery: 7.4V/ 2200mA (2 hours)
Input Voltage: DC 7-20V
Power Consumption: ≤13W
Working Temperature: -20°C~50°C
Storage Temperature: -30°C~65°C
Install Way: 1/4"-20 Thread mounting socket
Unit Size: 188.4L×134H×33.7D (mm)
Unit Weight: 450g/540g (with battery)
Advanced Features:
1. High Brightness 1000cd/m² sunlight readable, anti reflective matte screen
2. Built-in integrated lipo battery
3. Portable DVR, TF Card max up to 32G
4. Screenshot shortcuts
5. Motion Detection, Cycle Recording
6. High Sensitivity: -90dBM
7. Channel auto searching, selection via button
8. High sensitivity diversity receivers for the best possible reception, built in Dual receiver Automatically for best reception automatic switching.
9. FPV aerial dedicated input port, high Definition.
10. High brightness, contrast ratio sunshade cover, can see clearly under sunlight
11. No Blue Screen under weak signal
12. Multiple color format support,manually enter the menu to select the appropriate standard, stronger adaptability
13. Analog composite video AV input, connect FPV aerial camera
14. 16:9 screen radio, switch 16:9/4:3 display mode freely
15. Connect with camera, as a monitor or aerial monitor
16. Multiple installation ways,convenient for different angles to view
Photography Functions:
1. Peaking Focus Assist
2. Check Field (Red, Green, Blue, Mono)
3. Camera 5D II Mode
4. Screen Marker
5. Centre Marker
6. 4:3 & 16:9 image adjustable
7. Full Screen Display in mode of Monitoring & Recording
