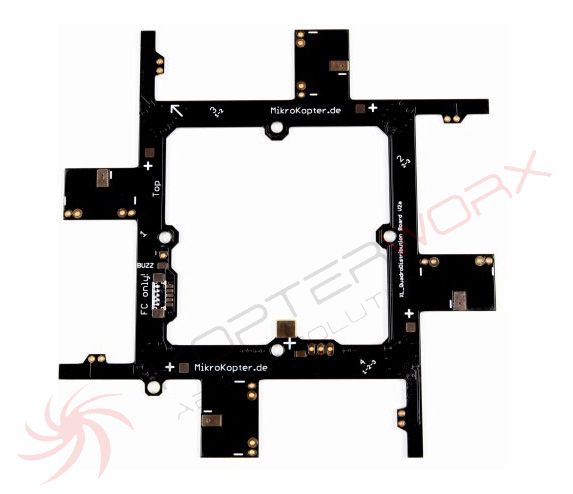

This is a power distribution printed circuit board for 4 BL-Ctrls to build a Quadro XL. The use reduces the wiring effort in building significantly.
The 4 BL-Ctrl fit right into the distributor board. Also this board distributes the I2C data bus. A Molex-connector can be assembled to connect the FlightControl easily The distribution board fits perfectly on the round combi centerplate..
- 4 layer layout with 105um Copper
- Gold plated with black soldermask
- Dimensions: 120 x 120 x 1 mm
