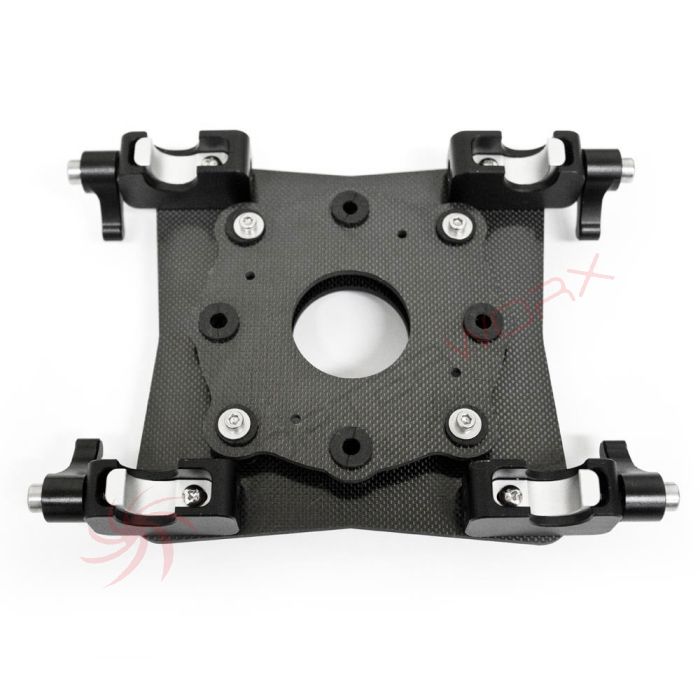

Antivib QR AV200

The Anti-Vibration Isolator Gimbal Mount is an adjustable dampening system for the Droidworx Skyjib v1 multirotor. This highly effective isolator drastically reduces vibrations to the gimbal, allowing the gyro stabilizer and camera to do their job. This system allows the Cinestar 3-axis or Photohigher AV200 3-axis gimbal to be mounted to the Skyjib 8 v1.

This style of isolator is quickly and completely adjustable for camera weight and dampening characteristics by changing the position of the specially designed neoprene ball isolators in the mount or switching to one of two different isolator ratings. This mount is designed to dampen for DLSR or RED Epic-class payloads. If you are planning on flying the RED Epic, this is the mount for you!

The Quick Release System is included as part of this kit and allows the entire gimbal assembly to be attached or removed in 10-seconds without any tools.

• Carbon Fiber Isolator Plates
• Carbon Fiber Gimbal Adapter Plate (AV200 or Cinestar)
• x8 Ball Isolators 4 soft for DSRL, 4x hard for epic, c300, ..
• 15mm Quick Release Clamps (x4)
• 15mm Quick Release Rail System
• Mounting Hardware

SPECIAL NOTES ON ISOLATOR RATING TYPES

We have found that the -2N isolator works best for DLSR payloads in the 2-8lbs (3.5kg) total gimbal weight. Therefore we recommend 8 (eight) -2N isolators for DLSRs. However, your particular setup may require something different.

We offer -5N type isolators for RED Epic payloads in the 12-14lbs range (6.5kg). Because there are so many possible options for the Epic in terms of lens and your gimbal setup, we recommend starting with a combination of x4 -2N and x4 -5N isolators.
