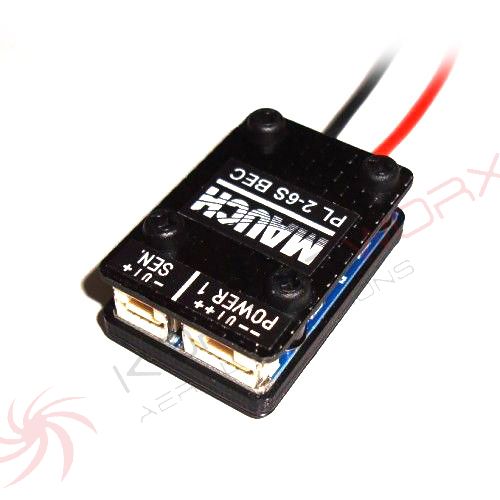

Mauch Premium Line 2-6S BEC 1x5.35V with CFK enclosure

5 on stock
SKU
MAU2-015
€34.90 €28.61

Input 2-6S LiPo / max. 28V.

Output 5.35V / 3A -> +/- 0.05V –> Ripple 10mV (0.2%) at 1.5A output current.

Inclusive LDO power supply (+5.00V +/- 0.03V) for the sensor board PL-xxx as well as PL- Sensor Hub X2 and output conector with Molex Clik-Mate 4p.

Input wrong polarity protection, as well as TDK input and output capacitors to prevent burn out of the UBEC from voltage spikes.

Blue power "ON' LED.

34mm x 22mm x 7mm / 7g without CFK enclosure

36mm x 24mm x 10mm / 12g with CFK enclosure

Delivery in PP box: 55 x 55 x 20mm / 25g

Scope of delivery:

1x PL-2-6S BEC 1x

1x CFK enclosure

1x Sensor cable Molex Clik-Mate 4p / L = 150mm

REM: The BEC is delivered without an flight controller cable, so please selct the correct cable to match your FC:

041: DF13-6p -> Pixhawk 1 / APM... etc.

042: Molex Clik-Mate 2.0 - 6p -> Pixhawk 2.1

043: JST-GH-6p -> Pixhawk 3... etc
